Turning Inserts >BTAT605000RX

Turning Inserts

BTAT605000RX

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI BTAT605000RX
Hand R
Stock
Unit of Length M
EPSR 50°
PSIRR 60°

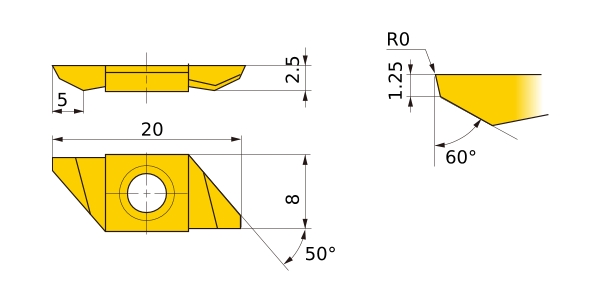

LE 5
L 20
W1 8
CW 1.25
S 2.5
CF 0
REL 0
Breaker flat_top
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • External Holder
