Turning Inserts >CCGT060202R-SN

Turning Inserts

CCGT060202R-SN

Product Information

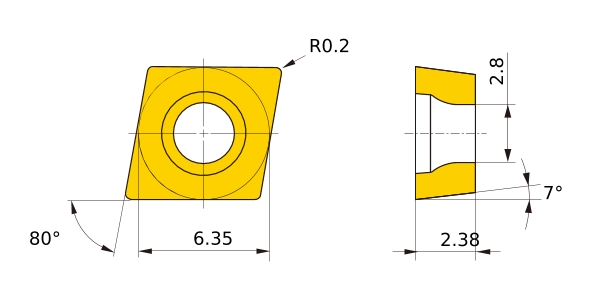

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
ANSI CCGT21.50.5RSN
Hand R
Stock
Unit of Length M
D1 2.8
IC 6.35
EPSR 80°
GAN 20°
AN
LBB 1
LE 3
S 2.38
RE 0.2
Breaker R-SN
3D Detail Model (STP,STL)
CAD data name Download
CC060202R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
