Turning Inserts >DCET070201R-SR

Turning Inserts

DCET070201R-SR

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI DCET21.50.2RSR
Hand R
Stock
Unit of Length M

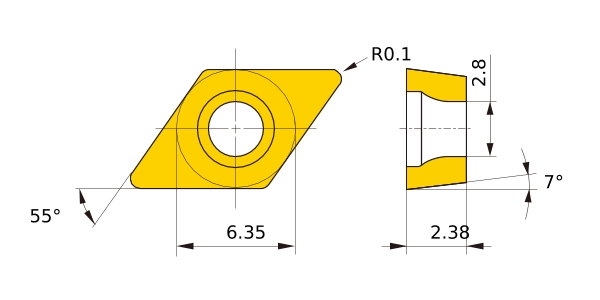

D1 2.8
IC 6.35
EPSR 55°
GAN 30°
AN 7°
LBB 2.5
LE 7.6
S 2.38
RE 0.1
Breaker R-SR
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
2D Model (DXF)
CAD data name Download
