Turning Inserts >DCET070204R-SR

Turning Inserts

DCET070204R-SR

Product Information

The actual product may differ from the displayed image.

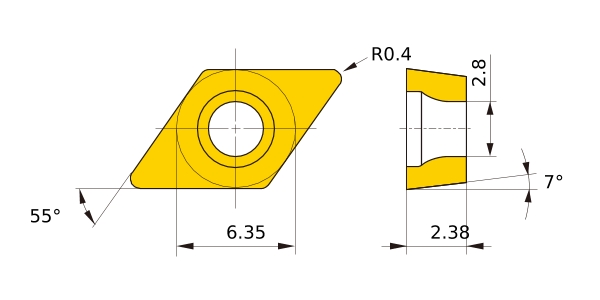

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade VP15TF
ANSI DCET21.51RSR
Hand R
Stock
Unit of Length M
D1 2.8
IC 6.35
EPSR 55°
GAN 30°
AN
LBB 2.5
LE 7.1
S 2.38
RE 0.4
Breaker R-SR
Classification of Grades
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
3D Detail Model (STP,STL)
CAD data name Download
DC070204R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
