Turning Inserts >DCMT070204-SV

Turning Inserts

DCMT070204-SV

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Cermet
Grade NX3035
ANSI DCMT21.51SV
Hand N
Stock
Unit of Length M

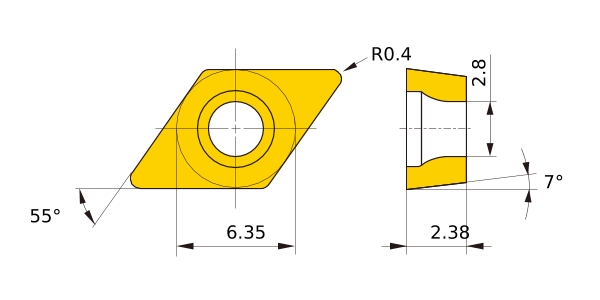

D1 2.8
IC 6.35
EPSR 55°
AN
S 2.38
RE 0.4
Breaker SV
Classification of Grades
Coated・Carbide UE6110
Coated・Carbide US735
Coated・Carbide VP15TF
Coated・Cermet VP45N
Non-coated・Cermet NX2525
2D Model (DXF)
CAD data name Download
DC070204N
CAD

3D Detail Model (STP,STL)
CAD data name Download
DC070204N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
