Turning Inserts >WCGT020102L

Turning Inserts

WCGT020102L

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Cermet
Grade NX2525
ANSI WCGT1.210.5L
Hand L
Stock
Unit of Length M

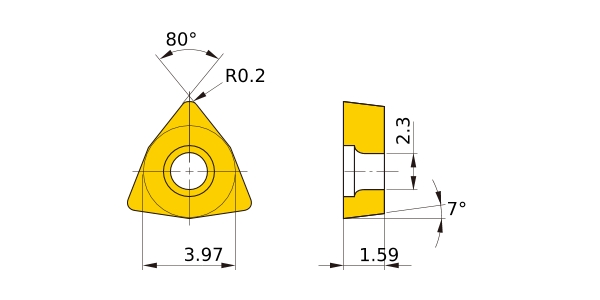

D1 2.3
IC 3.97
EPSR 80°
GAN 15°
AN 7°
LBB 1
LE 2.1
S 1.59
RE 0.2
Breaker L
