Turning Inserts >MMT11IR125ISO

Turning Inserts

MMT11IR125ISO

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP10MF
ANSI MMT11IR125ISO
Hand R
Stock
Unit of Length M

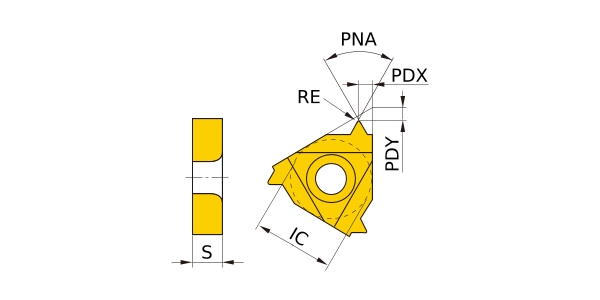

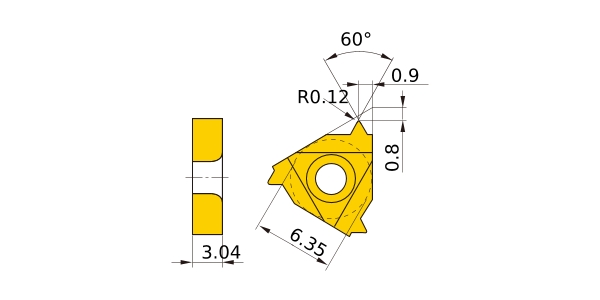

IC 6.35
PNA 60°
CW 1.25
S 3.04
PDX 0.9
PDY 0.8
RE 0.12
Classification of Grades
Coated・Carbide VP15TF
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Threading Holder
