Turning Inserts >BTBT7055V5R-SMB
BTBT7055V5R-SMB

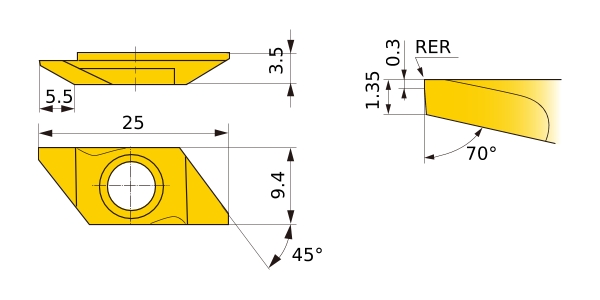

The actual product may differ from the displayed image.
For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | VP15TF |
| ANSI | BTBT7055V5R-SMB |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| EPSR | 45° |
| PSIRR | 70° |
| CDX | 6.5 |
| LE | 5.5 |
| L | 25 |
| W1 | 9.4 |
| CW | 1.35 |
| S | 3.5 |
| CF | 0.3 |
| REL | 0.05 |
| Breaker | SMB |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
