Turning Inserts >CPMH080202-LP

Turning Inserts


Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade MC6125
ANSI CPMH2.51.50.5LP
Hand N
Unit of Length M

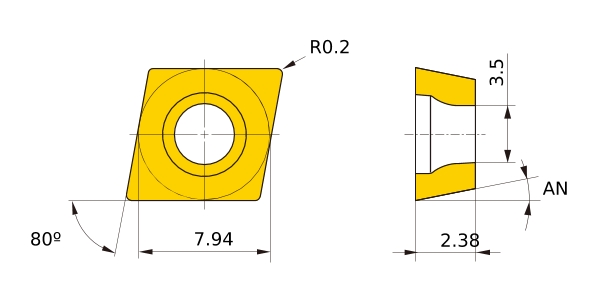

D1 3.5
IC 7.94
EPSR 80º
AN 11°
S 2.38
RE 0.2
Breaker LP
3D Detail Model (STP,STL)
CAD data name Download


:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
