Fresa frontal >DWAE >DWAE0750X02S080

Fresa frontal

DWAE
（BROCAS DE METAL DURO PARA TORNOS MULTIHUSILLOS Y PEQUEÑOS TORNOS CNC）

DWAE0750X02S080

Información sobre productos

  • LONGITUD ÓPTIMA DE LA HÉLICE PARA TORNOS MULTIHUSILLOS Y PEQUEÑOS TORNOS CNC
  • DISEÑO CON BAJA RESISTENCIA AL CORTE
  • CENTRO DE AFILADO (Z)
  • La calidad con recubrimiento DP102A proporciona una lubricidad excelente y una durabilidad a largo plazo que garantiza una resistencia al desgaste excelente a velocidades de corte de medias a bajas.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad DP102A
Existencia
Unidad de longitud M

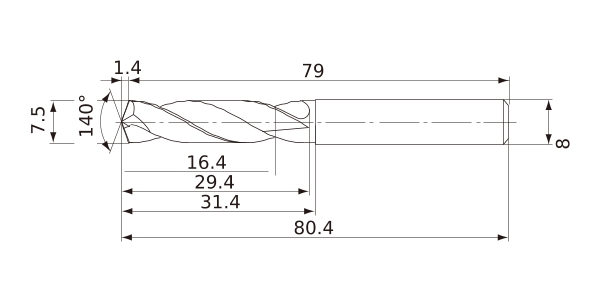

DC 7.5
DCON 8
SIG 140°
LF 79
OAL 80.4
LH 31.4
LU 16.4
LCF 29.4
FHA 30°
ld 2
PL 1.4
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte 0
Tolerancia mín. de diámetro de filo de corte -0.022
Tipo de refrigerante Exterior
Modelo 2D (DXF)
Nombre datos CAD Descargar
DWAE0750X02S080
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Modelo Ligth 3D (STP,STL)
Nombre datos CAD Descargar
DWAE0750X02S080
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Existencia

:Existencia en Europa
:A fabricar según demanda
:Existencia en Europa Será reemplazado por nuevos productos.
:Existencia en Japón

  • Estado de corte recomendado
