Fresas integrales >VQ2XLB >VQ2XLBR0100N120S06

Fresas integrales

VQ2XLB
（PUNTA ESFÉRICA, LONGITUD DE CORTE CORTA,2 HÉLICES, CUELLO LARGO）

VQ2XLBR0100N120S06

Información sobre productos

  • Un nuevo filo con una geometría única y resistente en forma de S proporciona una resistencia mejorada a las microroturas.
  • Recubrimiento SMART MIRACLE que proporciona una mejor resistencia al desgaste al mecanizar materiales difíciles de cortar.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Existencia

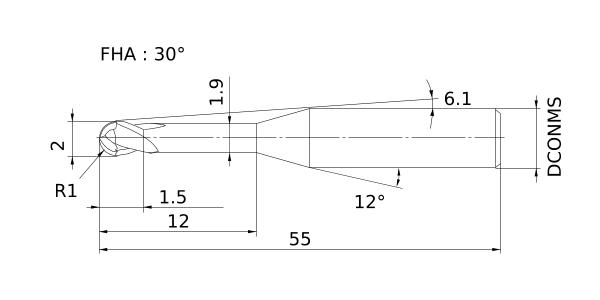

Unidad de longitud M
DC 2
DCON 6
DN 1.9
B2 6.1
BHTA2 12°
LF 55
LU 12
APMX 1.5
FHA 30°
RE 1
Peripheral effective cutting edge count: ZEFP 2
Tolerancia radial - -0.005
Tolerancia radial + 0.005
Recubrimiento VQ
Modelo 2D (DXF)
Nombre datos CAD Descargar
VQ2XLBR0100N120S06
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Modelo Ligth 3D (STP,STL)
Nombre datos CAD Descargar
VQ2XLBR0100N120S06
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Existencia

:Existencia en Europa
:A fabricar según demanda
:Existencia en Europa Será reemplazado por nuevos productos.
:Existencia en Japón

  • Estado de corte recomendado
