Placas torno >TNGN160404

Placas torno

TNGN160404

Información sobre productos

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad HTi10
ANSI TNG331
Mano N
Existencia
Unidad de longitud M

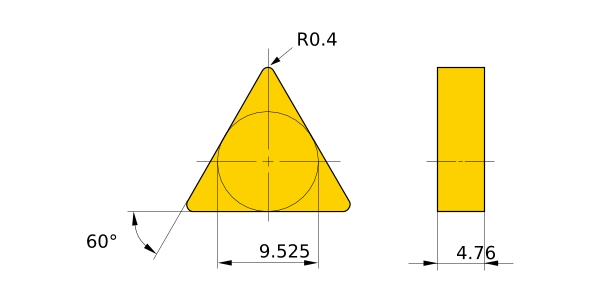

IC 9.525
EPSR 60°
S 4.76
RE 0.4
Rompevirutas flat_top
Modelo 2D (DXF)
Nombre datos CAD Descargar
TN160404N
CAD
