Placas torno >DNMG150404-FPH

Placas torno

DNMG150404-FPH

Información sobre productos

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad MC6135
ANSI DNMG431FPH
Mano N
Existencia

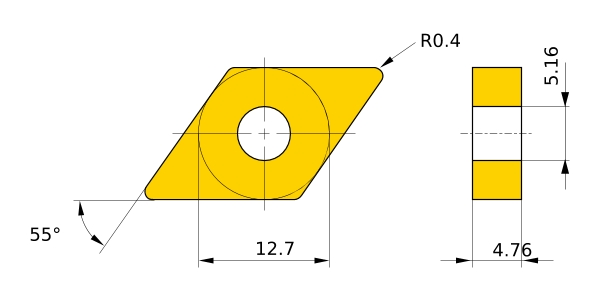

Unidad de longitud M
D1 5.16
IC 12.7
EPSR 55°
S 4.76
RE 0.4
Rompevirutas FPH
Clasificación de calidades
Recubrimiento・Metal Duro MC6115
Recubrimiento・Metal Duro MC6125
Modelo 2D (DXF)
Nombre datos CAD Descargar
DN150404N
CAD
