Usinage intérieur

S_SVQC_C
（Barre d’alésage Type S）

C16RSVQCR11

Information Produit

  • Standard ISO.
  • Plaquette amovible positive 7°.
  • Type à fixation par vis
  • Rapport l/d équivalent à 3 - 5 fois le diamètre (7 fois max. avec la queue de foret carbure).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

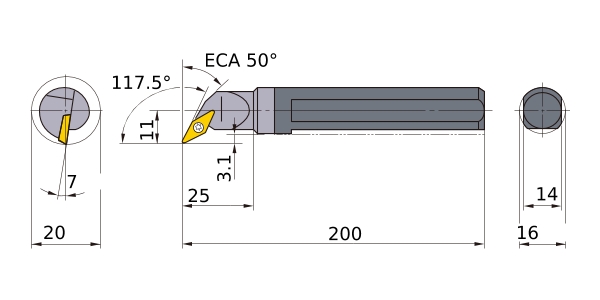

Type   [Agrandir ]

Type   [Agrandir ]

Diamètre (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Direction du P.O. R
Stock
Unité de longueur M
DMIN 20
DCON 16
KAPR 117.5°
LF 200
LDRED 25
WF 11
H 14
WF2 3.1
GAMF 7
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Numéro plaquette VC__1103
2D Modèle (DXF)
Nom du fichier Télécharger
C16RSVQCR11
