Plaquettes de tournage >VPGT080202M-SMG

Plaquettes de tournage

VPGT080202M-SMG

Information Produit

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Agrandir ]

Type   [Agrandir ]

Diamètre (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Dénomination Nuance Carbure
Nuance VP15TF
ANSI VPGT1.51.50.5MSMG
Direction du P.O. N
Stock

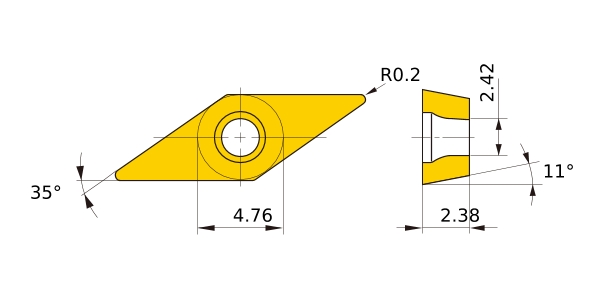

Unité de longueur M
D1 2.42
IC 4.76
EPSR 35°
AN 11°
S 2.38
RE 0.2
Brise-copeau SMG
2D Modèle (DXF)
Nom du fichier Télécharger
VP080202N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Modèle détaillé (STP,STL)
Nom du fichier Télécharger
VP080202N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Stock

:Article standard stocké en Europe.
:Pas de stock, produit sur commande uniquement.
:Article standard stocké. Destiné à être remplacé par de nouveaux produits.
:Article standard stocké au Japon.

  • Porte-outil externe
