Punte > DXAS

Punte

DXAS
（Punta a cuspide in metallo duro intercambiabile）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

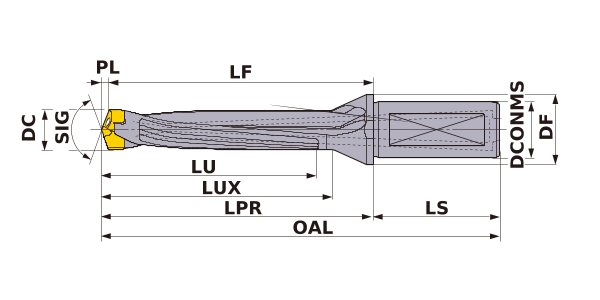

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo1 [Apri]

  1 2 3
Numero ordine Tipo CAD Tipo di refrigerante Mano Nome del grado Grado Magazzino
DXAS1800X1F25 Tipo1 Interno
DXAS1800X3F25 Tipo1 Interno
DXAS1800X5F25 Tipo1 Interno
DXAS1800X8F25 Tipo1 Interno
DXAS1900X1F25 Tipo1 Interno
DXAS1900X3F25 Tipo1 Interno
DXAS1900X5F25 Tipo1 Interno
DXAS1900X8F25 Tipo1 Interno
DXAS2000X1F25 Tipo1 Interno
DXAS2000X3F25 Tipo1 Interno
DXAS2000X5F25 Tipo1 Interno
DXAS2000X8F25 Tipo1 Interno
DXAS2100X1F25 Tipo1 Interno
DXAS2100X3F25 Tipo1 Interno
DXAS2100X5F25 Tipo1 Interno
DXAS2100X8F25 Tipo1 Interno
DXAS2200X1F25 Tipo1 Interno
DXAS2200X3F25 Tipo1 Interno
DXAS2200X5F25 Tipo1 Interno
DXAS2200X8F25 Tipo1 Interno
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Rompitrucioli Uso corpo Lama modulare Numero inserto DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1.5 32 140° 58 55 114 56 1 2   25
3 59 140° 85 82 141 56 1 2   25
5 95 140° 121 118 177 56 1 2   25
8 149 140° 175 172 231 56 1 2   25
1.5 33.5 140° 59.5 56.3 115.5 56 1 2   25
3 62 140° 88 84.8 144 56 1 2   25
5 100 140° 126 122.8 182 56 1 2   25
8 157 140° 183 179.8 239 56 1 2   25
1.5 35 140° 61 57.6 117 56 1 2   25
3 65 140° 91 87.6 147 56 1 2   25
5 105 140° 131 127.6 187 56 1 2   25
8 165 140° 191 187.6 247 56 1 2   25
1.5 36.5 140° 62.5 58.9 118.5 56 1 2   25
3 68 140° 94 90.4 150 56 1 2   25
5 110 140° 136 132.4 192 56 1 2   25
8 173 140° 199 195.4 255 56 1 2   25
1.5 38 140° 64 60.3 120 56 1 2   25
3 71 140° 97 93.3 153 56 1 2   25
5 115 140° 141 137.3 197 56 1 2   25
8 181 140° 207 203.3 263 56 1 2   25
  1 2 3

Magazzino

:Giacenze disponibili.
:Nessuna giacenza, prodotto solo su ordinazione.
:Giacenze disponibili. Da sostituirsi con nuovi prodotti.
:Giacenze disponibili in Giappone.
