Frese frontali >AXD7000 >AXD7000R402SA40SB

Frese frontali

AXD7000
（Per lega di alluminio）

AXD7000R402SA40SB

Informazioni sul prodotto

  • Inserti a bassa resistenza.
  • Possibili elevate velocità del mandrino.
  • Eccellente precisione delle pareti.
  • Fresatura multifunzione.
  • Passaggio refrigerante aria.

The actual product may differ from the displayed image.

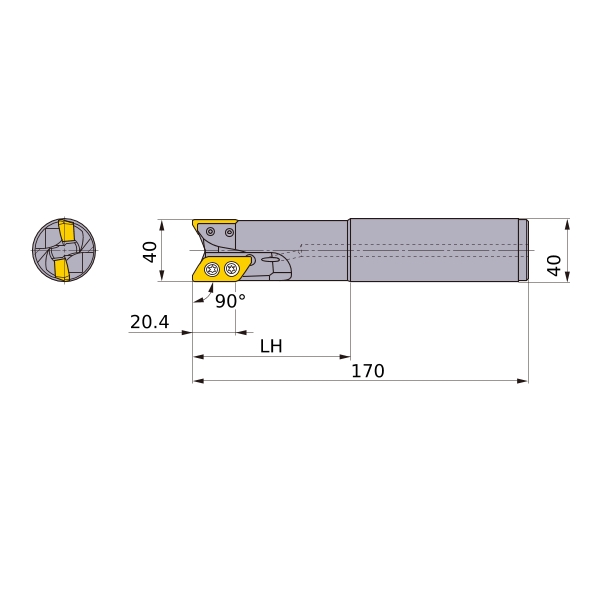

For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Mano R
Magazzino
Unità di lunghezza M
DC 40
DCON 40
KAPR 90°
RMPX 11
LF 170
LU 80
APMX 20.4
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 36000
