GTAF
（Utensili serie mini）

GTAFL1010-30

Informazioni sul prodotto

  • Per serie di portautensili
  • Elevata rigidità grazie al disegno dell'inserto verticale.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR

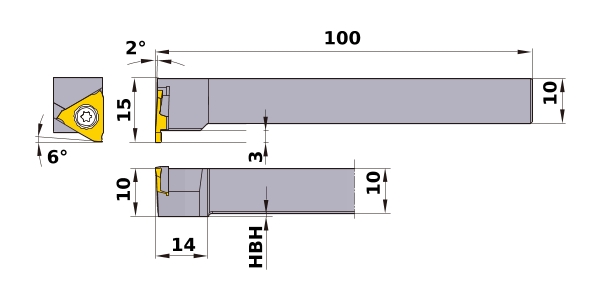

ANSI GTAFL1010-30
Mano L
Magazzino
Unità di lunghezza M
B 10
B2 2°
LF 100
LH 14
CDX 3
WF 15
H 10
HF 10
Peripheral effective cutting edge count: ZEFP 1
