SH-GTAF
（Utensili serie mini）

SH200-GTAFL-30

Informazioni sul prodotto

  • Per tornitura posteriore
  • Elevata rigidità grazie al disegno dell'inserto verticale.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SH200-GTAFL-30
Mano L
Magazzino
Unità di lunghezza M

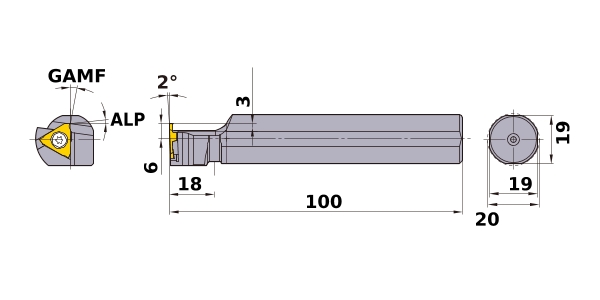

DCONMS 20
B 19
B2 2°
LF 100
CDX 3
LDRED 18
WF 6
H 19
GAMF 20°
Peripheral effective cutting edge count: ZEFP 1
Modello 2D (DXF)
Nome dati CAD Download
SH200-GTAFL-30
