Scanalatura Serie GY

MVX


MVX4200X6F40

Informazioni sul prodotto

  • Combinazione ideale di inserto CVD esterno e inserto PVD interno.
  • Corpo ad elevata rigidità che consente la lavorazione di fori profondi fino a L/D=6.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Magazzino

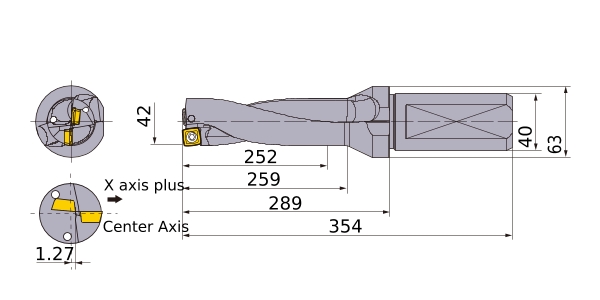

Unità di lunghezza M
DC 42
DCON 40
DCSFMS 63
OAL 354
LPR 289
LU 252
S10 1.27
LBX 259
ld 6
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Tipo di refrigerante Interno
