Frese integrali >AM3MF >AM3MFD1000A075

Frese integrali

AM3MF
（3 tagli, Serie media, lavorazioni di finitura, tagliente al centro）

AM3MFD1000A075

Informazioni sul prodotto

  • Versatile fresa a candela per cave e fresatura in parete di alluminio.
  • Per lavorazione di finitura e precisione con tolleranze elevate.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Apri ]

Tipo   [Apri ]

Diametro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Magazzino

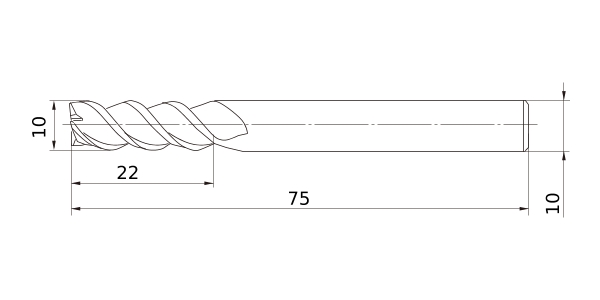

Unità di lunghezza M
DC 10
DCON 10
LF 75
APMX 22
FHA 50°
Peripheral effective cutting edge count: ZEFP 3
Tolleranza max diametro tagliente 0
Tolleranza min diametro tagliente. -0.03
Modello 2D (DXF)
Nome dati CAD Download
AM3MFD1000A075
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Modello Semplificato 3D (STP,STL)
Nome dati CAD Download
AM3MFD1000A075
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Magazzino

:Giacenze disponibili.
:Nessuna giacenza, prodotto solo su ordinazione.
:Giacenze disponibili. Da sostituirsi con nuovi prodotti.
:Giacenze disponibili in Giappone.

  • Condizione di taglio consigliato
