Сверла >MNS_DIN >MNS0820-L8C

Сверла

MNS_DIN


MNS0820-L8C

Информация о продукте

  • Оптимальная геометрия канавки и режущей кромки для обработки алюминиевых сплавов

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Тип   [Развернуть ]

Тип   [Развернуть ]

Диаметр (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Наименование сплава Твердосплавный
Сплав TF15
Склад

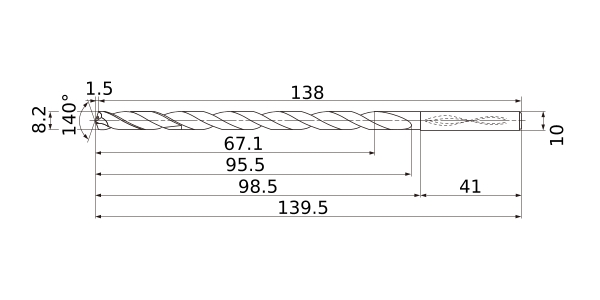

Единицы длины M
D1 8.2
D4 10
DC 8.2
DCON 10
SIG 140°
LF 138
OAL 139.5
LH 98.5
LU 67.1
LCF 95.5
LS 41
FHA 30°
ld 8
PL 1.5
Effective Cutting Edge 2
Макс. допуск диаметра режущей кромки 0.021
Мин. допуск диаметра режущей кромки 0.006
Тип охлаждающей жидкости Внутренний
2D Модель (DXF)
Имя CAD данных Загрузка
MNS0820-L8C
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Упрощённая Модель (STP,STL)
Имя CAD данных Загрузка
MNS0820-L8C
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.
Show more

Склад

:Есть на складе.
:Отсутствует на складе, изготовляется только на заказ.
:Есть на складе. Подлежит замене новой продукцией.
:Есть на складе в Японии.

  • Рекомендуемые режимы резания
