Цельные концевые фрезы

MVX


MVX2400X6F25

Информация о продукте

  • Идеальное сочетание внешней пластины CVD и внутренней пластины PVD.
  • Корпус высокой жесткости позволяет выполнять обработку глубоких отверстий L/D=6.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Тип   [Развернуть ]

Тип   [Развернуть ]

Диаметр (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Склад

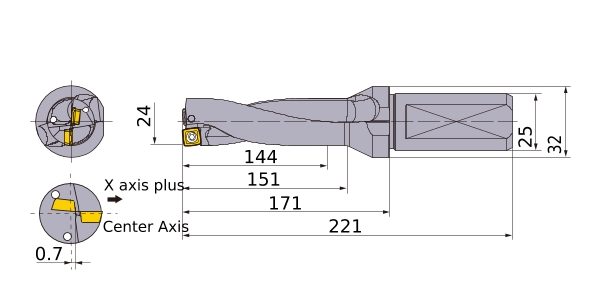

Единицы длины M
DC 24
DCON 25
DCSFMS 32
OAL 221
LPR 171
LU 144
S10 0.7
LBX 151
ld 6
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
Effective Cutting Edge 1
Тип охлаждающей жидкости Внутренний
