Режущие пластины для токарной обработки

WNMG100612-RS

Информация о продукте

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Тип   [Развернуть ]

Тип   [Развернуть ]

Диаметр (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Наименование сплава Твердосплавный
Сплав MP9015
ANSI WNMG543RS
Сторона N
Склад
Единицы длины M

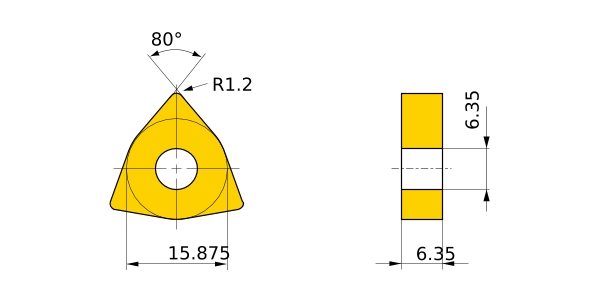

D1 6.35
IC 15.875
EPSR 80°
S 6.35
RE 1.2
Стружколом RS
Классификация сплавов
С покрытием・Твердосплавный MP9025
Без покрытия・Твердосплавный MT9015
2D Модель (DXF)
Имя CAD данных Загрузка
WN100612N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

3D Детальная Модель (STP,STL)
Имя CAD данных Загрузка
WN100612N
CAD
Disclaimer
Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


If you agree to this disclaimer, please select “Agree” below.
Thank you for your understanding and cooperation.

Show more

Склад

:Есть на складе.
:Отсутствует на складе, изготовляется только на заказ.
:Есть на складе. Подлежит замене новой продукцией.
:Есть на складе в Японии.
