Boring

DPCL
(D Type Boring Head)

DPCL132R

Product Information

  • The minimum cutting dameter is from 40mm.
  • Economical negative insert.
  • Lever lock type.
  • Exchangeable head type.

The actual product may differ from the displayed image.

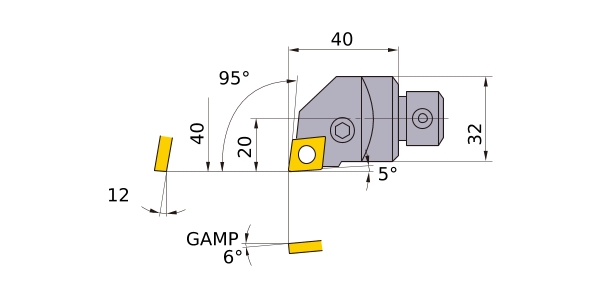

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DMIN 40
DCON 32
KAPR 95°
LF 40
WF 20
GAMF 12
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__1204
2D Model (DXF)
CAD data name Download
DPCL132R
CAD

3D Detail Model (STP,STL)
CAD data name Download
DPCL132R
CAD

3D Light Model (STP,STL)
CAD data name RE Download
DPCL132R_MR0_8
0.8 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
