Boring >S_SCLC_C >C12MSCLCR06

Boring

S_SCLC_C
(S Type Boring Bar)

C12MSCLCR06

Product Information

  • The minimum cutting dameter is from 11mm.
  • 7°positive insert.
  • Screw-on type
  • ISO standard.
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

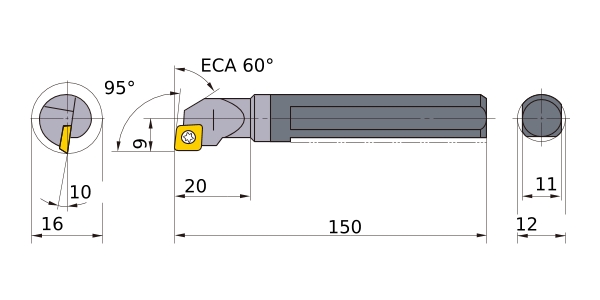

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DMIN 16
DCON 12
KAPR 95°
LF 150
LDRED 20
WF 9
H 11
GAMF 10
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__0602
2D Model (DXF)
CAD data name Download
C12MSCLCR06
CAD

3D Detail Model (STP,STL)
CAD data name Download
C12MSCLCR06
CAD

3D Light Model (STP,STL)
CAD data name RE Download
C12MSCLCR06_MR0_4
0.4 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
