Boring >FSCLC_P_A >FSCLC1008L-06A

Boring

FSCLC_P_A
(Dimple Bar)

FSCLC1008L-06A

Product Information

  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • The minimum cutting dameter is from 10mm.
  • Employs positive insert 5°,7°,11°.
  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

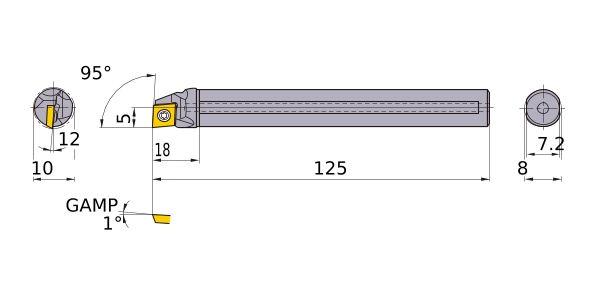

Diameter (Unit)
Hand L
Stock
Unit of Length M
DMIN 10
DCON 8
KAPR 95°
LF 125
LDRED 18
WF 5
H 7.2
GAMF 12
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__0602
2D Model (DXF)
CAD data name Download
FSCLC1008L-06A
CAD

3D Detail Model (STP,STL)
CAD data name Download
FSCLC1008L-06A
CAD

3D Light Model (STP,STL)
CAD data name RE Download
FSCLC1008L-06A_MR0_4
0.4 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
