Drills >3KD >3KD6D0850

Drills

3KD
（Triangular shank (Type 6.5)(Type 10)(Type 13)）

3KD6D0850

Product Information

  • 3 shank types for portable power tools.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

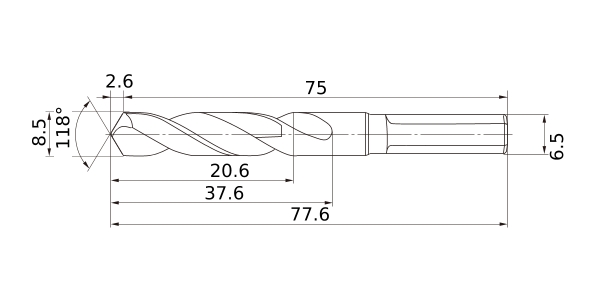

Unit of Length M
DC 8.5
DCON 6.5
SIG 118°
LF 75
OAL 77.6
LU 20.6
LCF 37.6
PL 2.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
