Drills >SDLS >SDLSD0210A150

Drills

SDLS
（STRAIGHT LONG SHANK DRILL）

SDLSD0210A150

Product Information

  • It is recommended to use when long overall length is demanded for preventing collision with workpiece with high rigidity.
  • For both machining center and manually operated machines.

The actual product may differ from the displayed image.

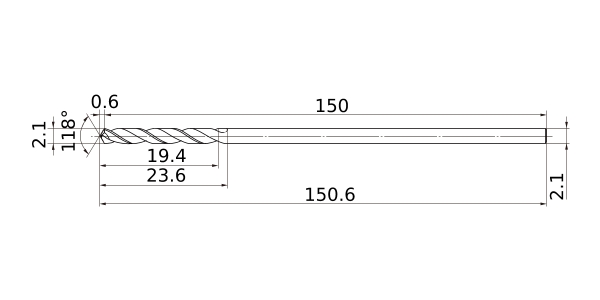

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 2.1
DCON 2.1
SIG 118°
LF 150
OAL 150.6
LU 19.4
LCF 23.6
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
Show more

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-

  • Recommended Cutting Condition
