Drills

DSAS
(SOLID CARBIDE DRILL WITH INTERNAL COOLANT)

DSAS0550X03S060

Product Information

  • TRI-Cooling Technology
  • STRAIGHT CUTTING EDGE WITH DEDICATED HONING
  • DP9020 GRADE FOR MACHINING HEAT RESISTANT ALLOYS
  • SPECIAL MARGIN

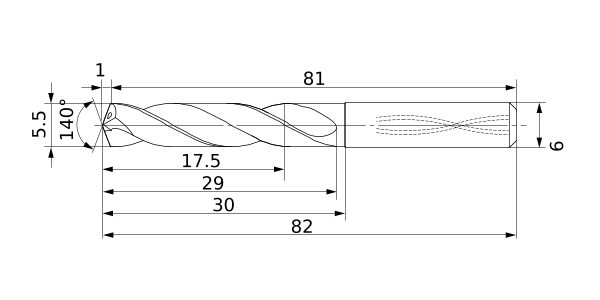

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade DP9020
Stock
Unit of Length M
DC 5.5
DCON 6
SIG 140°
LF 81
OAL 82
LH 30
LU 17.5
LCF 29
FHA 28°
ld 3
PL 1
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
DSAS0550X03S060
CAD

3D Light Model (STP,STL)
CAD data name Download
DSAS0550X03S060
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
