DVAS
（TRISTAR Drills）
DVAS0360X05S040

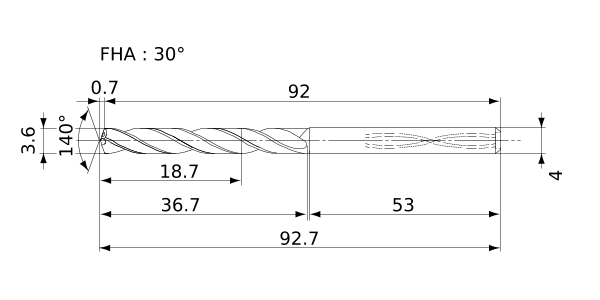

The actual product may differ from the displayed image.
For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | DP1120 |
| Stock |
|
| Unit of Length | M |
| DC | 3.6 |
| DCONMS | 4 |
| SIG | 140° |
| LF | 92 |
| OAL | 92.7 |
| LU | 18.7 |
| LCF | 36.7 |
| LS | 53 |
| FHA | 30° |
| ld | 5 |
| PL | 0.7 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.012 |
| Type of Coolant | Internal |
Stock
:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
Recommended Cutting Condition
