Indexable End Mills

BRP5


BRP5NR323S32

Product Information

  • 11°positive insert.
  • Round shape insert gives strong cutting edge.
  • A wide variety of sizes.
  • Suitable for roughing of moulds and dies.
  • Max.depth of cut 5.5mm.
  • Multi functional milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

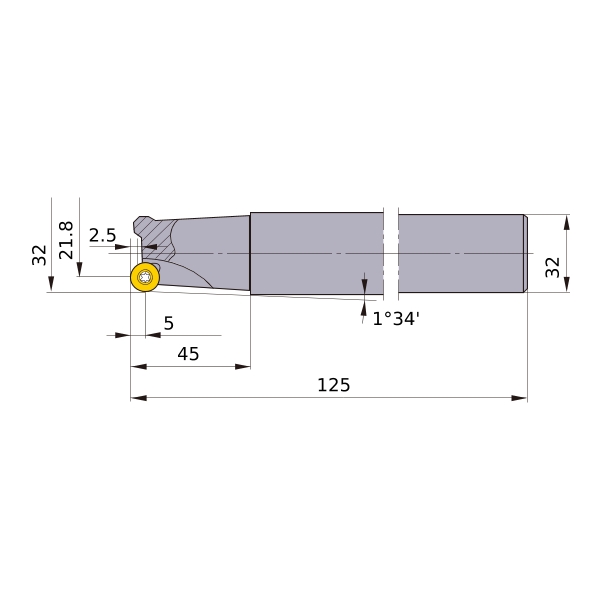

Unit of Length M
AZ 2.5
DC 21.8
DCX 32
DCON 32
B2 1°34'
LF 125
LH 45
APMX 5
GAMP -5°
GAMF 0°
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
