OCTACUT-B


OCTACUT504S32RB

Product Information

  • 20°positive insert.
  • Compatible with 8-corner use insert and round type insert.
  • Capable of multiple functions.

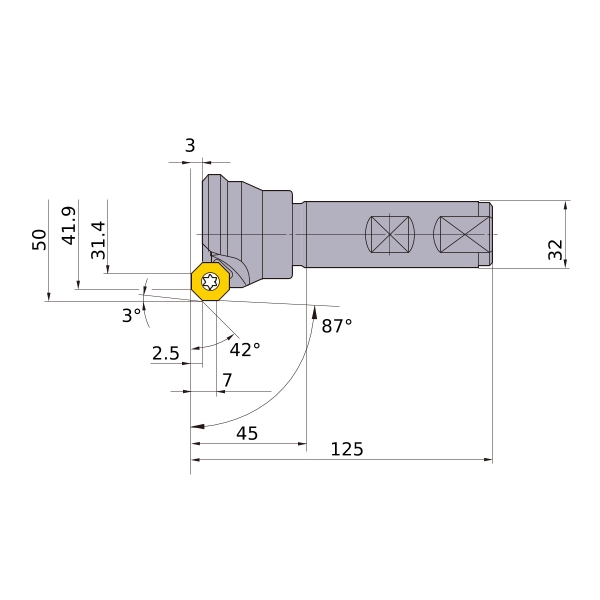

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
A1 2.5
AZ 3
DC 41.9
DCX 50
DCON 32
KAPR 42°
LF 125
LH 45
APMX 7
DCINX 31.4
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
2D Model (DXF)
CAD data name Download
OCTACUT504S32RB
CAD

3D Detail Model (STP,STL)
CAD data name Download
OCTACUT504S32RB
CAD

3D Light Model (STP,STL)
CAD data name DC Download
OCTACUT504S32RB_MD12_7
12.7 CAD CAD
OCTACUT504S32RB_MD12_95
12.95 CAD CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
