Indexable End Mills >PMC >PMC09R323AM1245

Indexable End Mills

PMC


PMC09R323AM1245

Product Information

  • 2 directional cutting with large overhang.

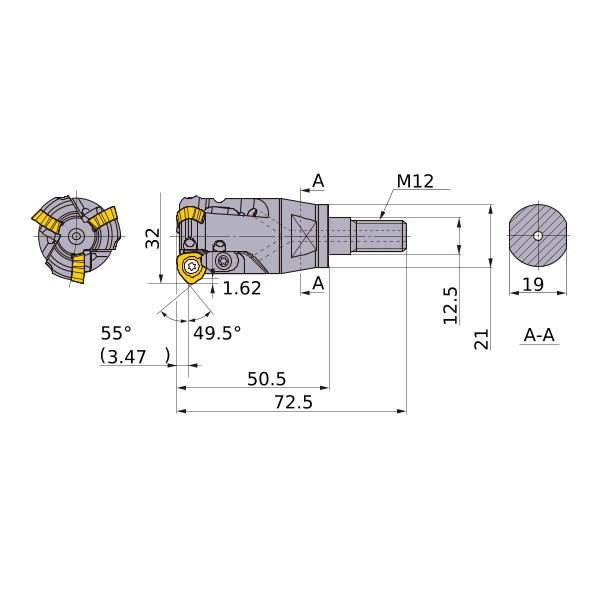

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DCX 32
DCON 12.5
DCSFMS 21
KAPR1 49.5°
KAPR2 55°
LF 50.5
OAL 72.5
S10 19
APMX 3.47
CWX 1.62
GAMP +5°
GAMF +8°
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
