Indexable End Mills >ARP >ARP6PR3203SA32M

Indexable End Mills

ARP
（Round insert cutter for difficult-to-cut materials）

ARP6PR3203SA32M

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

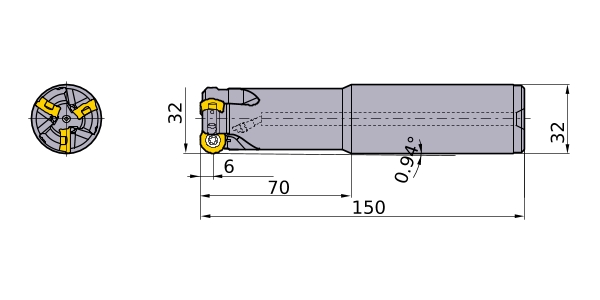

A1 1
AZ 0.6
DC 20.1
DCX 32
DCON 32
B2 0.94°
RMPX 2.0°
LF 150
LH 70
APMX 6
GAMP +4°
GAMF -7°
WT 0.76
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
ARP6PR3203SA32M
CAD
