Indexable End Mills >ARP >ARP5PR2502AM1235

Indexable End Mills

ARP
（Round insert cutter for difficult-to-cut materials）

ARP5PR2502AM1235

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

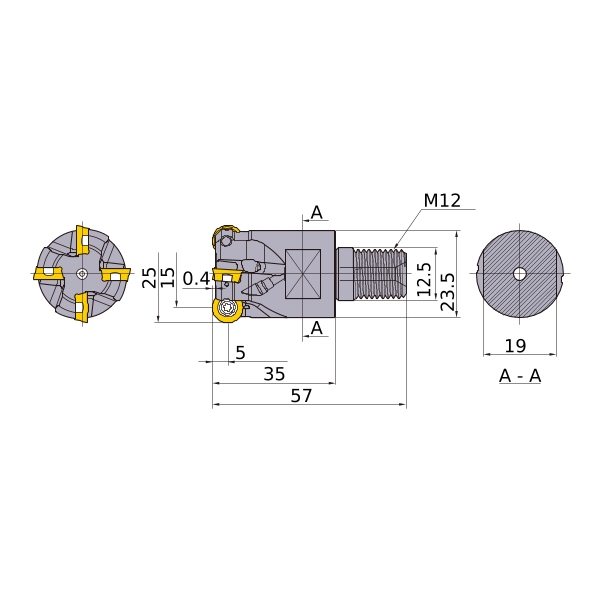

AZ 0.4
DC 15
DCX 25
DCON 12.5
DCSFMS 23.5
RMPX 1.8°
LF 35
OAL 57
S10 19
APMX 5
GAMP +4°
GAMF -7°
WT 0.1
CRKS M12
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
