Indexable End Mills >WJX09 >WJX09R3202SA32S

Indexable End Mills

WJX09
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09R3202SA32S

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

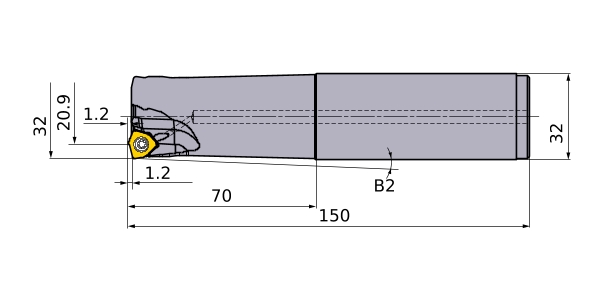

AZ 1.2
DC 20.9
DCX 32
DCON 32
RMPX 4.2°
LF 150
LH 70
APMX 1.2
GAMP -6°
GAMF -11°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 27300
