Indexable End Mills

WJX09_SCREW-IN
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09R2502AM1235

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

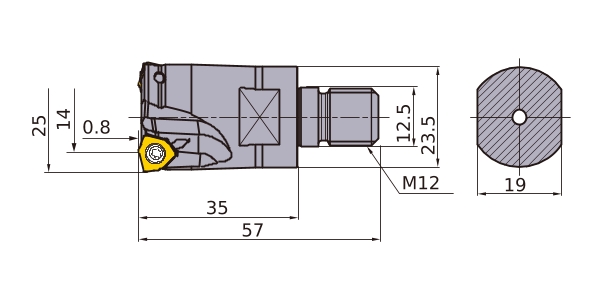

AZ 0.8
DC 14
DCX 25
DCON 12.5
DCSFMS 23.5
RMPX 4.7°
LF 35
OAL 57
S10 19
APMX 1.2
GAMP -8°
GAMF -12°
WT 0.1
CRKS M12
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
RPMX 33500
2D Model (DXF)
CAD data name Download
WJX09R2502AM1235
CAD
