External Cutting >PCLN >PCLNL3232P16

External Cutting

PCLN


PCLNL3232P16

Product Information

  • Lever lock type.
  • ISO standard.
  • Various holder shapes.
  • Suitable for light to heavy cutting.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

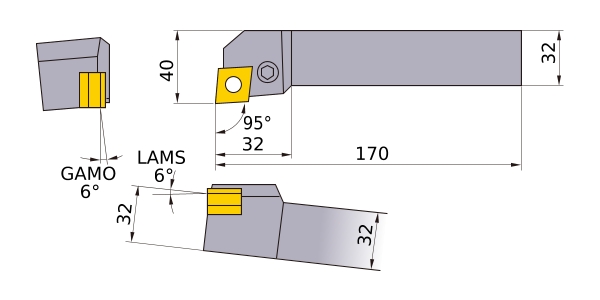

B 32
KAPR 95°
LF 170
LH 32
WF 40
H 32
HF 32
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__1606
2D Model (DXF)
CAD data name Download
PCLNL3232P16
CAD
