External Cutting >SCAC-SM >SCACR1616M09-SM

External Cutting

SCAC-SM


SCACR1616M09-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.

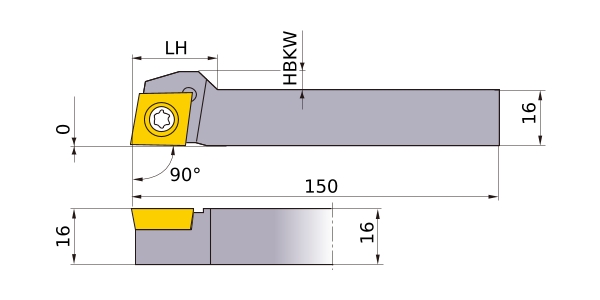

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
ANSI SCACR1616M090-SM
Hand R
Stock
Unit of Length M
B 16
KAPR 90°
LF 150
H 16
HF 16
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__09T3
2D Model (DXF)
CAD data name Download
SCACR1616M09-SM
CAD

3D Detail Model (STP,STL)
CAD data name Download
SCACR1616M09-SM
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SCACR1616M09-SM_MR0_2
0.2 CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
