External Cutting

TLHR


TLHR3225P10

Product Information

  • Taper lock type
  • Excellent finished surface with round shape insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand N
Stock
Unit of Length M

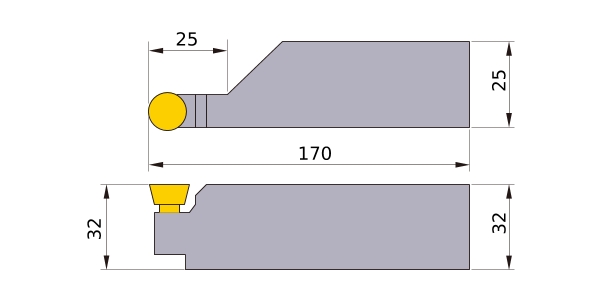

IC 10
B 25
LF 170
LH 25
H 32
HF 32
Peripheral effective cutting edge count: ZEFP 1
Insert Number RTG10A
2D Model (DXF)
CAD data name Download
TLHR3225P10
