Face Cutter >BXD4000 >BXD4000R12507EB

Face Cutter

BXD4000
（ALUMINIUM ALLOY FOR DIFFICULT-TO-CUT MATERIAL CUTTING）

BXD4000R12507EB

Product Information

  • The Anti Fly Insert mechanism guarantees secure high-revolution milling.
  • Low resistance insert and high rigidity body.
  • Air coolant through.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

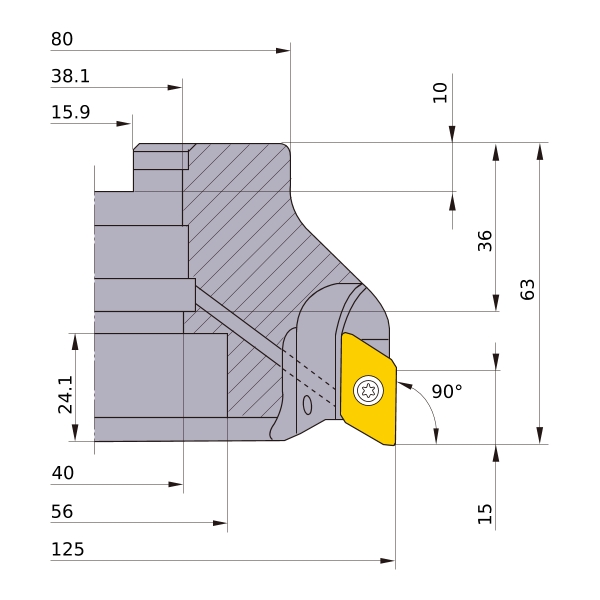

Unit of Length M
DC 125
DCON 38.1
DCSFMS 80
DAH 40
DCCB 56
KAPR 90°
RMPX 2
L8 10
LF 63
CBDP 36
LCCB 24.1
KWW 15.9
APMX 15
GAMP +15°
GAMF +16°
WT 2.8
Peripheral effective cutting edge count: ZEFP 7
RPMX 14000
