Face Cutter >VOX400 >VOX400R25034K

Face Cutter

VOX400
（STRONG EDGE TYPE FOR CAST IRON）

VOX400R25034K

Product Information

  • Vertical inserts with high　strength cutting edge.
  • Economical due to the use of 8 cutting edges.

The actual product may differ from the displayed image.

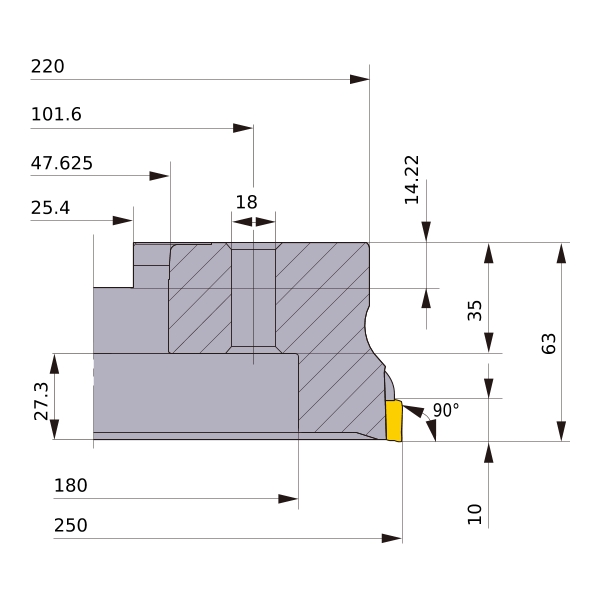

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 250
DCON 47.625
DCSFMS 220
DAH 18
DCCB 180
KAPR 90°
L8 14.22
LF 63
CBDP 35
LCCB 27.3
KWW 25.4
APMX 10
GAMP -6°
GAMF -18°
WT 13
DBC 101.6
Peripheral effective cutting edge count: ZEFP 34
