Face Cutter >ARP_MM >ARP6P-100B11AR

Face Cutter

ARP_MM
（Round insert cutter for difficult-to-cut materials）

ARP6P-100B11AR

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

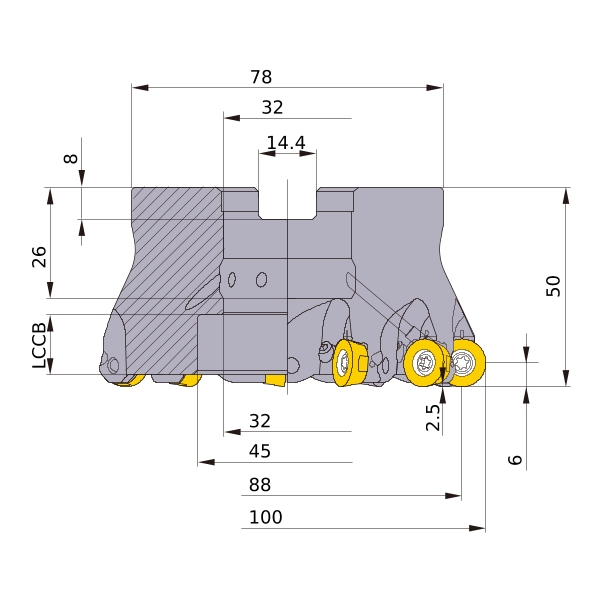

A1 2.5
AZ 2.5
DC 88
DCX 100
DCON 32
DCSFMS 78
DAH 32
DCCB 45
RMPX 1.7°
L8 8
LF 50
CBDP 26
KWW 14.4
APMX 6
GAMP +4°
GAMF -6°
WT 1.45
R 6
Peripheral effective cutting edge count: ZEFP 11
