Insert for Rotating Tools

OEMX1705ETR1-JS

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI OEMX1705ETR1-JS
Stock
Unit of Length M

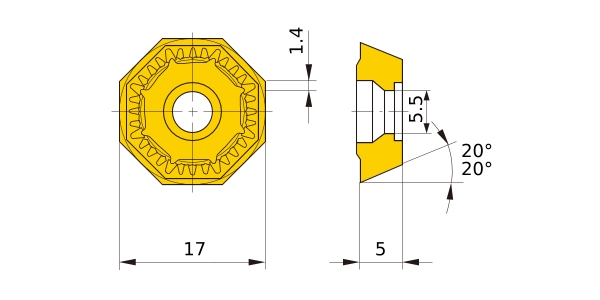

D1 5.5
IC 17
AN 20°
BS 1.4
S 5
2D Model (DXF)
CAD data name Download
OEMX1705ETR1-JS
CAD
