Insert for Rotating Tools

GPMT11T308-U3

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade UP20M
ANSI GPMT11T308-U3
Stock
Unit of Length M

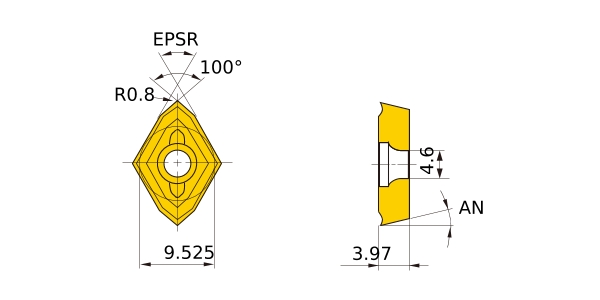

D1 4.6
IC 9.525
S 3.97
RE 0.8
Classification of Grades
Coated・Carbide UE6020
Coated・Carbide US735
