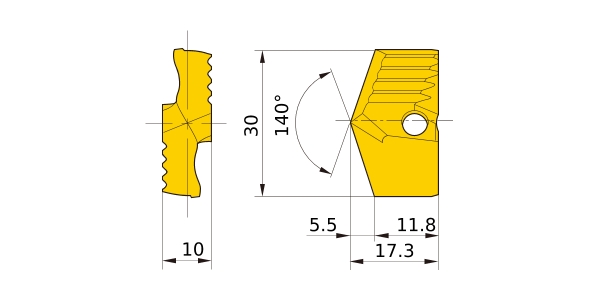

Insert for Rotating Tools

TAWNH3000T

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI TAWNH3000T
Stock
Unit of Length M
SIG 140°
LF 11.8
INSL 17.3
S 10
CDI 30
PL 5.5
Classification of Grades
Coated・Carbide VP10H
2D Model (DXF)
CAD data name Download
TAWNH3000T
CAD
