Insert for Rotating Tools

STAWN1010TH

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP15TF
ANSI STAWN1010TH
Stock
Unit of Length M

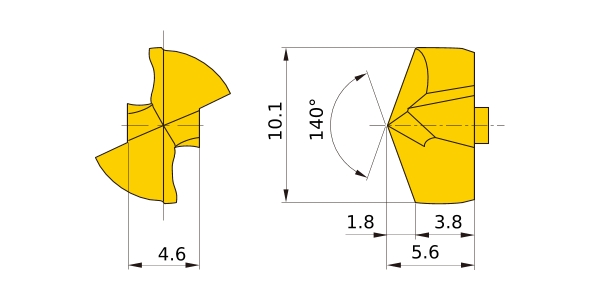

SIG 140°
LF 3.8
INSL 5.6
S 4.6
CDI 10.1
PL 1.8
Classification of Grades
Coated・Carbide VP10H
2D Model (DXF)
CAD data name Download
STAWN1010TH
