Small Tools >FSVUB_C >FSVUB4032R-16S

Small Tools

FSVUB_C
(Dimple Bar)

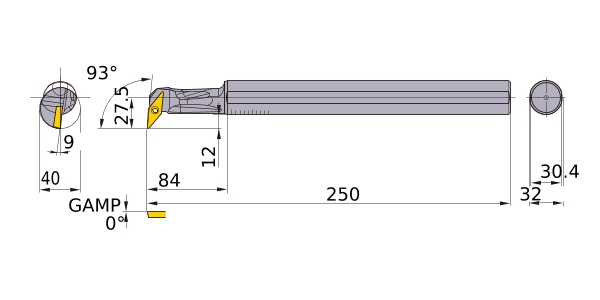

FSVUB4032R-16S

Product Information

  • Excellent vibration resistance due to light dimple head.
  • Chip disposal is improved by having two channels for chip evacuation.
  • l/d is 3 to 5 times the diameter (Carbide shank is 7 to 8 times the diameter).
  • Employs positive insert 5°,7°,11°.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DMIN 40
DCON 32
KAPR 93°
LF 250
LDRED 84
WF 27.5
H 30.4
WF2 12
GAMF 9
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1604
2D Model (DXF)
CAD data name Download
FSVUB4032R-16S
CAD

3D Detail Model (STP,STL)
CAD data name Download
FSVUB4032R-16S
CAD

Stock

:Inventory maintained in Japan.
:Non stock, produced to order only.
:Inventory maintained in Japan. To be replaced by new products.
:-
