Small Tools >GTAF >GTAFL2020-30

Small Tools

GTAF
（Small Tools）

GTAFL2020-30

Product Information

  • For gang type tool posts.
  • 10-25㎜ wide range of shank sizes
  • High rigidity due to desigh of vertical insert.
  • Economical due to the design of three-corner inserts

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI GTAFL2020-30
Hand L
Stock
Unit of Length M

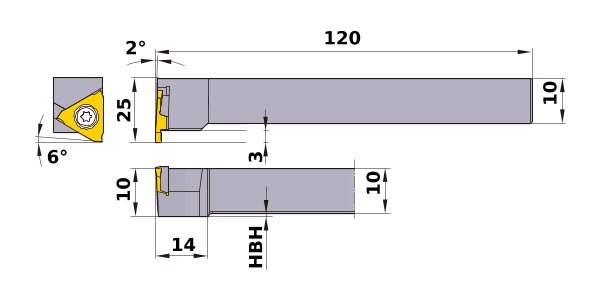

B 10
B2 2°
LF 120
LH 14
CDX 3
WF 25
H 10
HF 10
Peripheral effective cutting edge count: ZEFP 1
